P0 P6 P5 P4 P3 QUALITY LEVER 30205 30205XR 30205 JR 30205J2 30205Q Taper Roller Bearing for automotive and machinery
This is a factory and the products are sold at the factory price (below the market price). Don't you want to have a try?
Product introduction:
30205 J2/Q Single Row Tapered Roller Bearing 30205 J2/Q is a high-quality bearing designed for use in various industrial applications. It has a dimension of 25 mm x 52 mm x 16.25 mm, making it compact and easy to install. The bearing is made of high-grade materials that ensure durability and longevity, even in harsh operating conditions.
The tapered roller design of the bearing allows it to handle both radial and axial loads, making it suitable for use in applications that require high load-carrying capacity. The bearing's design also reduces friction and heat generation, which helps to extend its service life.
30205 J2/QSingle Row Tapered Roller Bearing 30205 J2/Q is easy to install and maintain. It has a simple design that allows for quick and easy replacement when necessary. The bearing is also designed to operate quietly, which makes it ideal for use in applications where noise is a concern.
The bearing is suitable for use in a wide range of applications, including automotive, industrial, and agricultural machinery. It is commonly used in gearboxes, transmissions, and wheel hubs, among other applications.
Dimensions
| d | 25 mm | Bore diameter |
| D | 52 mm | Outside diameter |
| T | 16.25 mm | Total width |
| d1 | ≈38 mm | Shoulder diameter of inner ring |
| B | 15 mm | Width of inner ring |
| C | 13 mm | Width of outer ring |
| r1,2 | min.1 mm | Chamfer dimension of inner ring |
| r3,4 | min.1 mm | Chamfer dimension of outer ring |
| a | 12.33 mm | Distance side face to pressure point |
Abutment dimensions
| da | max.32 mm | Diameter of shaft abutment |
| db | min.31.5 mm | Diameter of shaft abutment |
| Da | min.44 mm | Diameter of housing abutment |
| Da | max.46 mm | Diameter of housing abutment |
| Db | min.48 mm | Diameter of housing abutment |
| Ca | min.2 mm | Minimum width of space required in housing on large side face |
| Cb | min.3 mm | Minimum width of space required in housing on small side face |
| ra | max.1 mm | Radius of shaft fillet |
| rb | max.1 mm | Radius of housing fillet |
Calculation data
| Basic dynamic load rating | C | 38.1 kN |
| Basic static load rating | C0 | 33.5 kN |
| Fatigue load limit | Pu | 3.45 kN |
| Reference speed | | 11 000 r/min |
| Limiting speed | | 13 000 r/min |
| Limiting value | e | 0.37 |
| Calculation factor | Y | 1.6 |
| Calculation factor | Y0 | 0.9 |
Product presentati
| Product model | 30205 J2/Q | specification | Standard - Dust proof | Inner and outer ring material | steel | Oil lubrication speed | 9000 |
| Product type | TAPPER ROLLER BEARING | Rolling element material | steel | Size specifications | metric system | Model | 30205 J2/Q |
| General shipping date | Inquiry | Seal part structure | Open type | Inner diameter d | 25 | Internal clearance symbol | CM |
| Load direction | radial | Internal clearance symbol | CM | Outer diameter D | 52 | Accuracy (JIS) | Level 0 |
| Raceway wheel shape | Ball | Accuracy (JIS) | Level 0 | Width B(mm) | 16.25 | Grease lubrication speed | 70 |
| WEIGHT | 0,153 KG |
| SECTION | TAPERED ROLLER BEARING |
| N° EAN13 | 7316577744807 |
| INNER DIAMETER | 25 MM |
| OUTER DIAMETER | 52 MM |
| WIDTH | 16,25 MM |
| PACKAGING | 1 |
| PRODUCT REF | 30205-J2/Q |
More size:
| 30200series |
| Bearing Number | Dimension | Weight(kg) |
| 30205 | 25*52*16.5 | 0.15 |
| 30206 | 30*62* 17.5 | 0.232 |
| 30207 | 35*72*18.5 | 0.31 |
| 30208 | 40*80*20 | 0.4 |
| 30209 | 45*85*21 | 0.474 |
| 30210 | 50*90*22 | 0.522 |
| 30211 | 55*100*23 | 0.709 |
| 30212 | 60*110*24 | 0.901 |
| 30213 | 65*120*25 | 1.1 |
| 30214 | 70*125*26.5 | 1.27 |
| 30215 | 75*130*27.5 | 1.35 |
| 30216 | 80*140*28.5 | 1.65 |
| 30217 | 85*150*31 | 2.1 |
| 30218 | 90*160*33 | 2.52 |
| 30210 | 95*170*35 | 3.17 |
| 30220 | 100*180*37.5 | 3.8 |
| 30221 | 105*190*39.5 | 4.5 |
| 30222 | 110*200*41.5 | 5.16 |
| 30224 | 120*215*44 | 6.27 |
| 30226 | 130*230*44.5 | 7.43 |
| 30228 | 140*250*46.5 | 8.81 |
| 30230 | 150*270*50 | 10.2 |
| 30232 | 1600*2900*53 | 13.4 |
| 30234 | 170*310*52 | 16.6 |
| 30236 | 180*320*58 | 17.8 |
| 30300series |
| Bearing Number | Dimension | Weight(kg) |
| 30305 | 25*62*18.5 | 0.25 |
| 30306 | 30*72*21 | 0.393 |
| 30307 | 35*80*23 | 0.496 |
| 30308 | 40*90*25.5 | 0.7 |
| 30309 | 45*100*27.5 | 0.954 |
| 30310 | 50*110*29.5 | 1.33 |
| 30311 | 55*120*32 | 1.61 |
| 30312 | 60*130*34 | 2 |
| 30313 | 65*140*36.5 | 2.53 |
| 30314 | 70*150*38.5 | 3.09 |
| 30315 | 75*160*40.5 | 3.54 |
| 30316 | 80*170*43 | 4.5 |
| 30317 | 85*130*45 | 5.25 |
| 30318 | 90*190*47 | 5.79 |
| 30319 | 95*200*50 | 7.2 |
| 30320 | 100*215*52 | 8.27 |
| 30321 | 105*225*54 | 10.5 |
| 30322 | 110*240*55 | 11.4 |
| 30324 | 120*260*60 | 13.8 |
| 30326 | 130*280*64 5 | 20.5 |
| 30328 | 140*300*68.5 | 21.2 |
| 30330 | 150*320*73 | 27.4 |
| 31300series |
| Bearing Number | Dimension | Weight(kg) |
| 31308 | 40*90*25.5 | 0.66 |
| 31309 | 45*100*27.5 | 0.974 |
| 31310 | 50*110*29.5 | 1.23 |
| 31311 | 55*120*32 | 1.5 |
| 31312 | 60*130*34 | 1.92 |
| 31313 | 65*140*36.5 | 2.29 |
Bearing :30201 30202 30203 30204 30205 30206 30207 30208 302009
Quality:P0,P2,P3,P4,p5,p6
addition:ZZ ZN N M JR JQ J2 X2

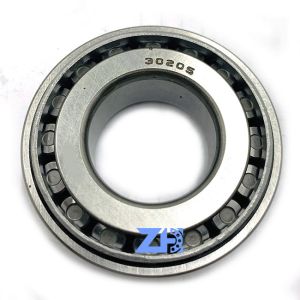

Product picture:
