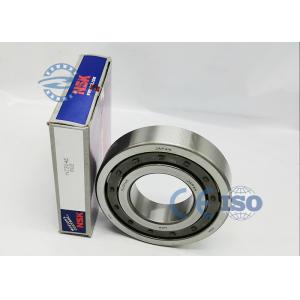

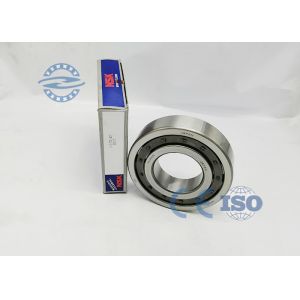

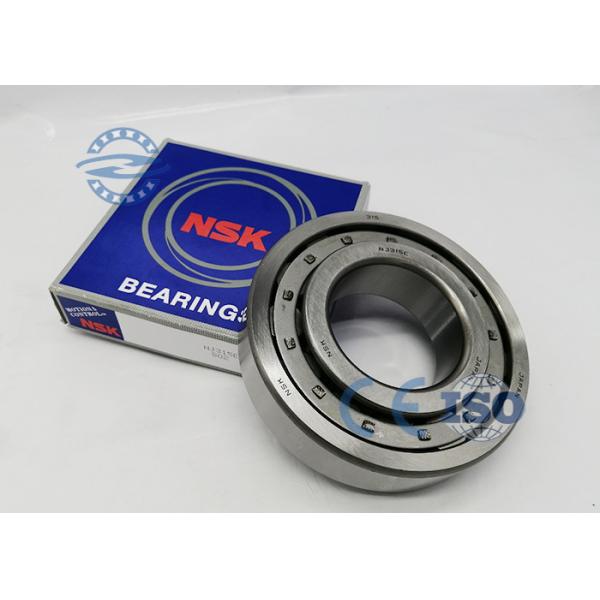

NSK CYLINDER ROLLER BEARINGS NJ314E NU314E steel cage factory price
. Ptoduct description
The rollers of cylindrical roller bearings have linear contact with the raceway,so the bearing can carry heavier radial load.
Normally these bearings can accommodate radial load only,none but single row bearings with ribs both on inner and outer rings can carry lighter axial load.
Such bearings need to be installed in the axial load of the host components, only in the same time using other types of bearings to bear the premise of axial load before use.
. Feature
· Long service life
The logarithmic roller profile reduces edge stresses at the roller/raceway contact and sensitivity to misalignment and shaft deflection.
· Enhanced operational reliability
The surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film
· High load carrying capacity
· High stiffness
· Accommodate axial displacement
Except for bearings with flanges on both the inner and outer rings.
· Low friction (Roller end / flange contact area)
The open flange design , together with the roller end design and surface finish, promote lubricant film formation resulting in lower friction and higher axial load carrying capacity.
Appliexcavatorion:
Steel Industry , Mining & Construction , Papermaking Machinery , Wind Turbines , Machine Tools , Gearboxes , Electric Motors , Pumps & Compressors , Injection Molding , Motorcycles , Railways.
| Bearing NO. | d(mm) | D()mm | B(mm) | Mass(kg) |
| NU304E | 20 | 52 | 15 | 0.201 |
| NU304EM | 20 | 52 | 15 | 0.201 |
| NJ304E | 20 | 52 | 15 | 0.16 |
| NJ304EM | 20 | 52 | 15 | 0.168 |
| N305E | 25 | 62 | 17 | 0.244 |
| N305EM | 25 | 62 | 17 | 0.298 |
| NF305E | 25 | 62 | 17 | 0.244 |
| NU305E | 25 | 62 | 17 | 0.251 |
| NU305EM | 25 | 62 | 17 | 0.375 |
| NJ305E | 25 | 62 | 17 | 0.256 |
| NJ305EM | 25 | 62 | 17 | 0.261 |
| NUP305E | 25 | 62 | 17 | 0.263 |
| NUP305EM | 25 | 62 | 17 | 0.284 |
| NUP305ENV | 25 | 62 | 17 | 0.26 |
| N306E | 30 | 72 | 19 | 0.36 |
| N306EM | 30 | 72 | 19 | 0.41 |
| NU306E | 30 | 72 | 19 | 0.367 |
| NU306EM | 30 | 72 | 19 | 0.30 |
| NJ306E | 30 | 72 | 19 | 0.30 |
| NJ306EM | 30 | 72 | 19 | 0.41 |
| NUP306EM | 30 | 72 | 19 | 0.40 |
